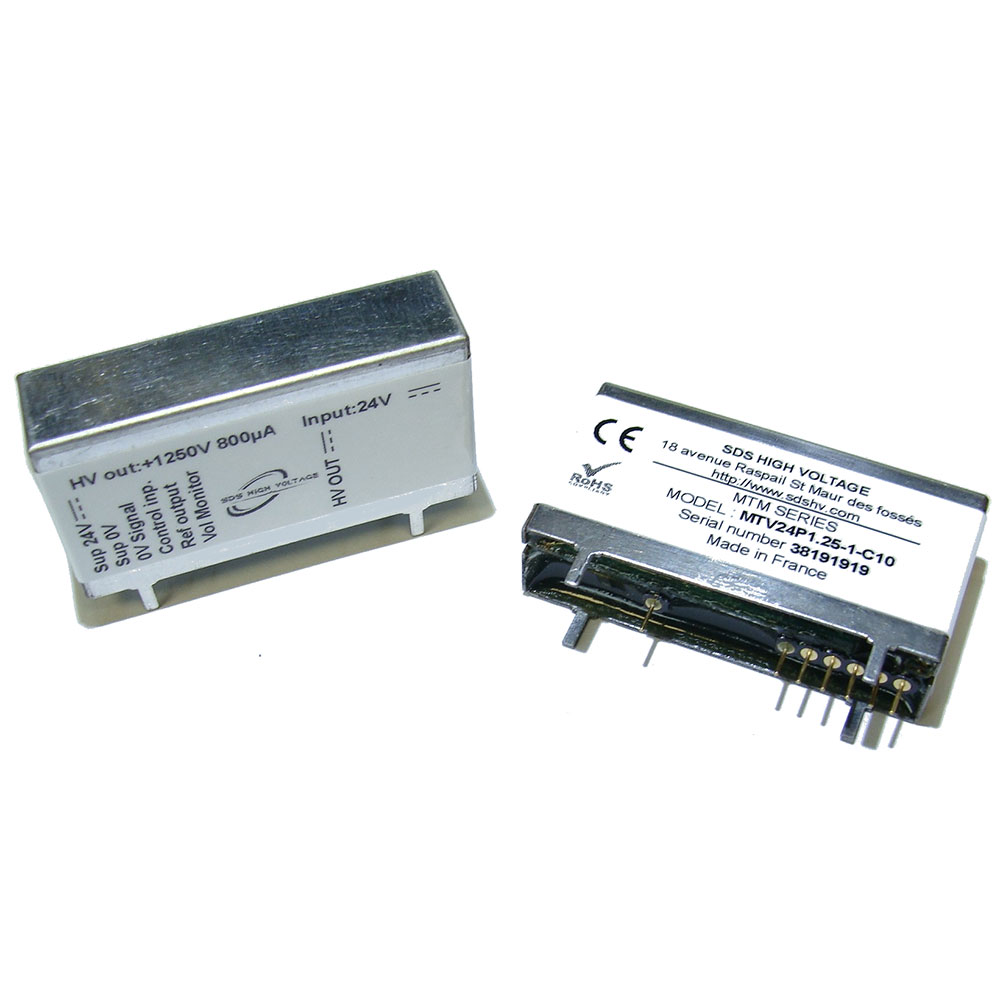

微型1W輸出0.6/1/1.25/1.5kVdc電源模塊

發布于:2024-07-04 15:33:12

品牌名稱:SDS High Voltage

重要參數:

功率:0.1W

輸入電壓:+12/+25 Vdc

輸出電壓:0.6/1.0/1.25/1.5 kVdc

特點:小體積重量輕

工作溫度:-40°C to +50°C

  • 產品詳情


型號:



MTVseries selection guide
Obsolete reference
       system
 Current reference
      System
VoutPola-
rity
lout/Pout  VinControlOtption
MT12N601831-5RMTV12N0.6-0.5-C5600V-0.83mA/0.5W12V5VPin
MT12N601831-10RMTV12N0.6-0.5-C10-10VPin
MT12N601831-5R-WMTV12N0.6-0.5-C5-L-5VWire
MT12N601831-10R-WMTV12N0.6-0.5-C10-L-10VWire
MT12P601831-5RMTV12P0.6-0.5-C55VPin
MT12P601831-10RMTV12P0.6-0.5-C1010VPin
MT12P601831-5R-WMTV12P0.6-0.5-C5-L5VWire
MT12P601831-10R-WMTV12P0.6-0.5-C10-L10VWire
MT15N601132-5RMTV15N0.6-0.8-C5-1.33mA/0.8W15V5VPin
MT15N601132-10RMTV15N0.6-0.8-C10-10VPin

規格參數:



ParametersSpecifications
Input voltage Vin(pins 1&2)12Vdc±0.5 or 15Vdc±0.5cor 24Vdc±1,according to the model.
Input currentAt no load:15mA.
At full load,from to 65mA to 100mA,according to the input voltage.
HV output Vout
(pin 7 or flying lead optional)
Programmable nominal voltage,refer to the Selection Guide for voltage
ranges,
accuracy:±0.2%at the max voltage.
Outpout voltage polarityFixed positive or negative,according to the model
Output voltage setting
(pins 3,4 &5)
Option 1:via an external potentiometer,minimum 10kQ (use Ref.Volt-
agepin5).
Option 2:via an external voltage 0/5Vor 0/10V,according to the model.
Note:input impedance of the control input(pin 4)=1MQ.
Max.output current loutRefer to the Selection Guide.
Load Voltage regulation±0.01%of the full output voltage,no load to full load.
Line Voltage regulation±0.01%of the full output voltage over the specified input voltage range.
RippleBetween 10mV to 40mVpeak-to-peak at full load,according to the
model.
Temperature coefficient100ppm/C over the temperature range O to 50℃.
HV monitoring output (Vmon)
(pin 6)
+1V/kVor -1V/kV according to the polarity of the model,accuracy:±2%,
output impedance=200MQ,TC=100ppm/℃(passive voltage divider).
Reference Voltage(pin 3)-option 1:5V,
-option 2:10V,
accuracy:±0.05%,TC50ppm/℃,max output current:1mA
Operating temperature range40℃to+50℃
Storage temperature range40℃to+70℃
Safeguards-Arc and short circuit protection.
-Protected against reverse Vin.
Option-Flying lead for the HV output instead of the pin 7 (suffix“L”)
Package Configuration
Case materialTin steel plate
Thickness 0.5mm
Case dimensionsL 46.0xW 12.0x24.6mm
PinsThrough roundpins,diameter:0.46mm,length:3mm,spacing:
2.54mmm.Option:flying wire for the HV output
PCB mounting4 mounting tabs,length:5mm,thickness:0.5mm
Weight35g
InsulationFully potted with an UL epoxy resin
Pins'function
Line input#1:Supply
#2:OV supply
HV setting#3:0V signal
#4:Control input
#5:Voltage reference
HV monitor#6:Voltage monitor
HV output#7:output
